₹ 21.00 +GST

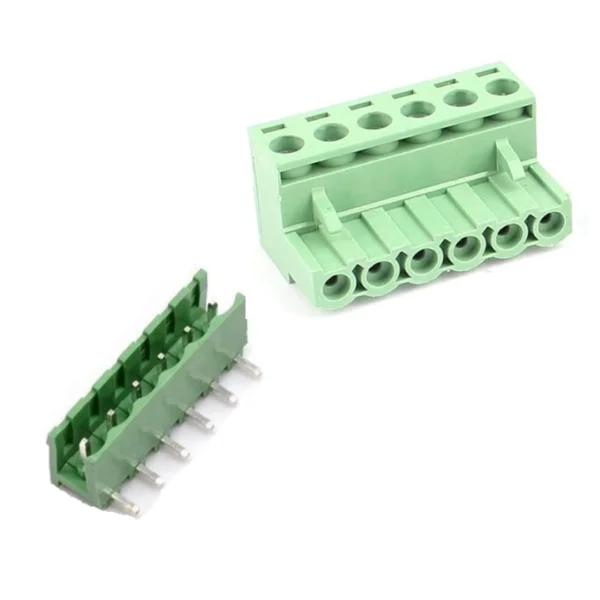

6Pin Pluggable Screw Terminal Block Connector – Right Angle – 5.08mm Pitch
Standard plug in type screw terminal block with right angle PCB mount male connector. Pin spacing is 5.08mm.
Technical Parameters –
Package Includes:
Only logged in customers who have purchased this product may leave a review.
| Connector | PCB Terminal Block |
| Termination | Screw |
| No. of Contacts | 2 |
| Allowed Wire Size (AWG) | 22 ~ 12 |
| Voltage(V) | 320 |
| Operating Current (A) | 6 |
| Mounting Type | Through Hole |
| Pin Spacing (mm) | 5.08 |
| Material | Metal and plastic |
| Length (mm) | 10 |
| Width (mm) | 10 |
| Height (mm) | 18 |
| Weight (gm) | 3 (each) |
| Connector | Header Strip |
| Gender | Male |
| Mounting Type | Through Hole |
| Pin Length (mm) | 10 |
| Pin Spacing (mm) | 2.54 |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20m |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance (M) | 1000 |
| Length (mm) | 101 |
| Width (mm) | 5 |
| Height (mm) | 17 |
| Weight (gm) | 6 |
| Plug Type | DC Jack |
| Gender | Male |
| No. of Contact Points | 2 |
| Connector Type | 2.1 x 5.5 |
| Weight (gm) | 7 |
| Connector type | Male connector |
| Shape | Cylindrical |
| Color | Black and silver |
| Diameter(mm) | 2.1 |
| Length (mm) | 46 |
| Plug Type | 5.5 x 2.1 mm |
| No. of Pin | 3 |
| Operating Temperature () | -30 ~ +70 |
| Rated load | DC 30V / 1.0A |
| Contact resistance | 0.03 |
| Insulation Resistance (M) | 100 |
| Center Pole Diameter (mm ) | 2.1 |
| Compatible with | 5.5 mm jack |
| Number of Pins | 40 |
| Pitch (mm) | 2.54 |
| Pin Height (mm) | 6 |
| Length (mm) | 101 |
| Width (mm) | 2.4 |
| Height (mm) | 11.5 |
| Weight (gm) | 2 |
| Connector | Header Strip |
| Gender | Female |
| Mounting Type | Through Hole |
| Pin Spacing (mm) | 2.54 |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20m |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance (M) | 1000 |
| Length (mm) | 102 |
| Width (mm) | 2 |
| Height (mm) | 8 |
| Weight (gm) | 1 |
