DC Jack, also known as a power jack, DC power jack, male jack, male plug, etc, is used to give external DC power to any device or board. It has a cylindrical miniature size. It is a perfect option to give direct external power to the board or any device. This product is known as CCTV Devices DC 5.5×2.1mm Male 2-Wire Lead Jack Power Cable Connector, 2.1mm Male to 30cm Cable, 5.5X2.1mm 12V DC Power Plug Male Jack Plug Cable, 5.5mm x 2.1mm DC Jack Connectors Power Extension Cable.

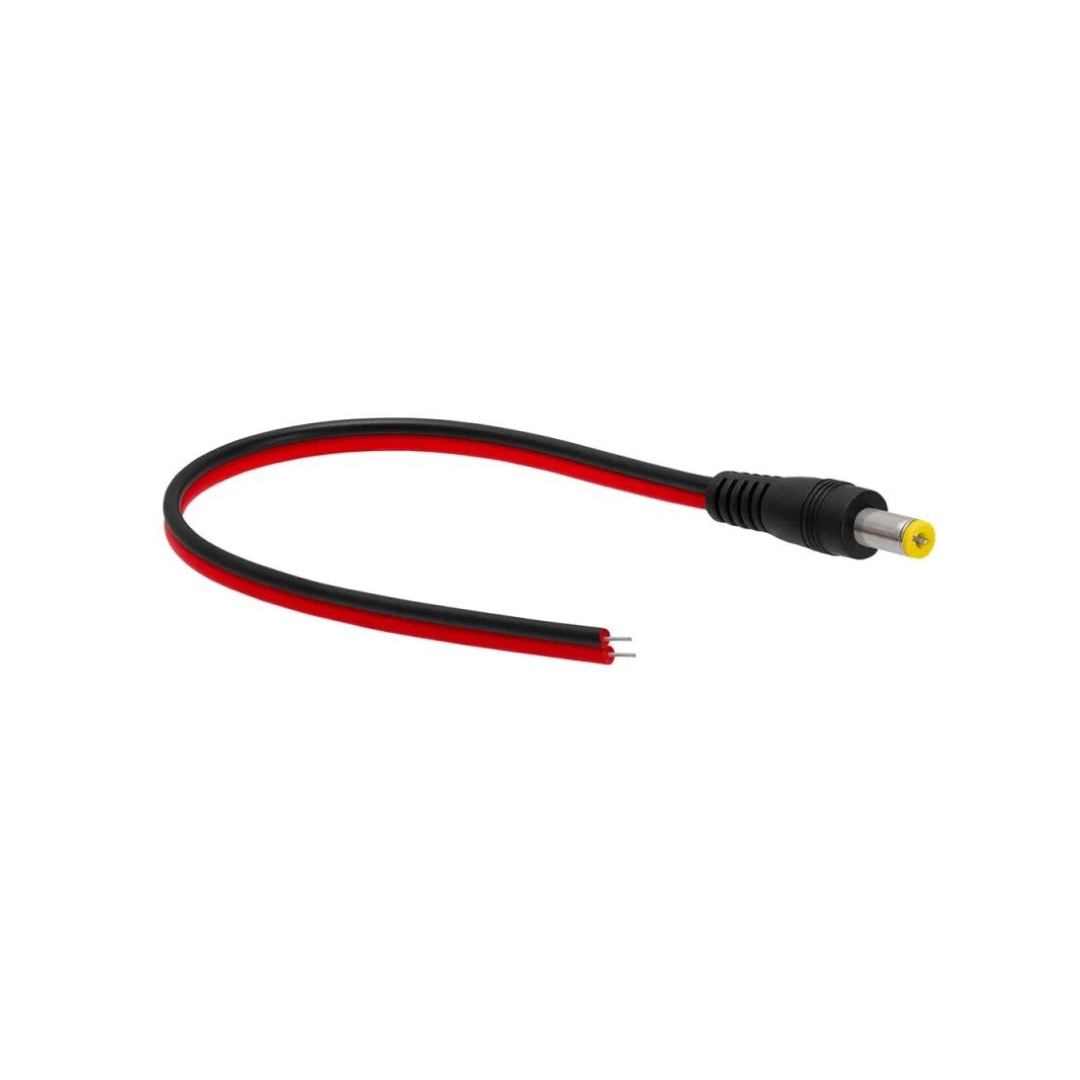

DC Jack Male Power Connector With Wire 5.5×2.1mm
₹ 7.00
- Material: PVC
- CCTV Camera power connection line
- Connector Type: 5.5mm X 2.1mm
- DC power jack: Male To Pigtail
- Supports maximum current: 5A
- Voltage Rating: 3.3V to 24V
- Great for short distance connection
- Simply & Professional appearance for cabling
- Easier for installation save time and money
- Easy to use
- Cable Length: 22cm
- Color: Black & Red
- Weight: 5gm
₹ 9.00
| Plug Type | DC Jack |
| Gender | Female |
| No. of Contact Points | 2 |
| Connector Type | 2.1 x 5.5 |
| Weight (gm) | 7 |
₹ 6.40
- 40×1 Male Header
- Material: Brass
- Right Angle Type
- Pitch: 2.54 mm
₹ 9.00
| Plug Type | DC Jack |
| Gender | Male |
| No. of Contact Points | 2 |
| Connector Type | 2.1 x 5.5 |
| Weight (gm) | 7 |
₹ 5.00
| Supply voltage (V) | up to 30 |
| Type of connector | Female |
| Supports DC Power Jack | 2.1 x 5.5 mm |
| Diameter (mm) | 14 |
| Total Length (mm) | 18 |
₹ 4.50
| Number of Pins | 40 |
| Pitch (mm) | 2.54 |
| Pin Height (mm) | 6 |
| Length (mm) | 101 |
| Width (mm) | 2.4 |
| Height (mm) | 11.5 |
| Weight (gm) | 2 |
₹ 3.00
- Part No: YX126-3
- Manufacturer: XINYA
- Voltage Rating: 300V
- Current Rating: 10A
- Pin Spacing: 5.08mm
- Termination: Screw
- No. of Contacts: 3
- Connector: PCB Terminal Block
- Material: Metal and plastic
- Cable Size: 16 ~ 24 AWG
- Color: Dark Green
- Mounting Type: Through Hole
- Height: 10 mm
- Approx Weight: 4.5 gm
₹ 4.00
| Plug Type | 5.5 x 2.1 mm |
| No. of Pin | 3 |
| Operating Temperature () | -30 ~ +70 |
| Rated load | DC 30V / 1.0A |
| Contact resistance | 0.03 |
| Insulation Resistance (M) | 100 |
| Center Pole Diameter (mm ) | 2.1 |
| Compatible with | 5.5 mm jack |
₹ 10.50
- Maximum rated voltage – 300V
- Maximum rated current – 15A
- Pin spacing – 5.08mm
- Wire gauge – 28-12AWG
- Soldering Temperature – +250℃ for 5seconds
- Insulation – 5000MΩ/1000V
₹ 5.00
| Connector type | Male connector |
| Shape | Cylindrical |
| Color | Black and silver |
| Diameter(mm) | 2.1 |
| Length (mm) | 46 |
