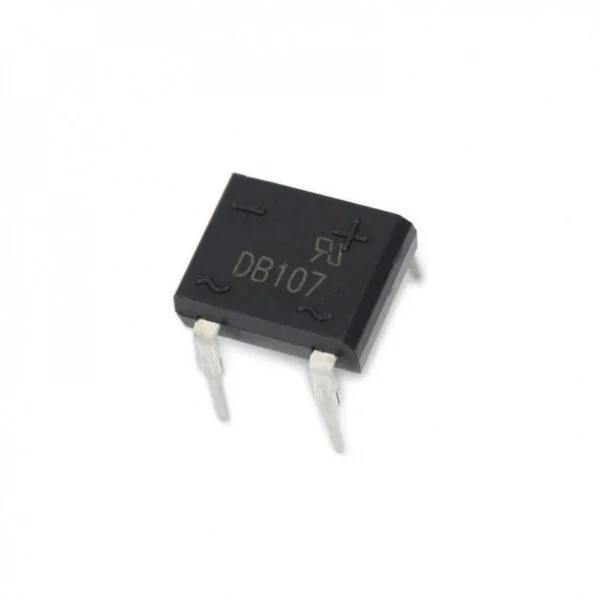

DB107 1 Amp Bridge Rectifier

₹ 7.00

SymbolParameterValueUnits
VRRMPeak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage1000V
VRWM
VR
VRMSRMS Reverse Voltage700V
IF(AV)Average Forward Output Current (Note 1) @ TC =100°C1A
IFSMNon-Repetitive Peak Forward Surge Current 8.3ms45A
Single half sine-wave superimposed on rated load
I2 tI2t Rating for Fusing (t < 8.3ms)8.404A 2s
Share it:

The DB107 is a single phase 1.0 Amp Glass Passivated Bridge Rectifier Case: DB-M, Molded plastic.

Mechanical Data:-

• Terminals: Plated leads solderable per MIL-STD-202, Method 208
• Polarity: as marked on case
• Mounting Position: Any
• Marking: Type Number
• Lead Free: For RoHS / Lead Free Version

Features:-

• Glass passivated die construction
• Low forward voltage drop
• High current capability
• High surge current capability
• Plastic material-UL flammability 94V-0
• This is a Pb − Free Device
• “-HF” suffix is for Halogen Free Device
• All SMC parts are traceable to the wafer lot
• Additional testing can be offered upon request

SymbolParameterValueUnits
VRRMPeak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage1000V
VRWM
VR
VRMSRMS Reverse Voltage700V
IF(AV)Average Forward Output Current (Note 1) @ TC =100°C1A
IFSMNon-Repetitive Peak Forward Surge Current 8.3ms45A
Single half sine-wave superimposed on rated load
I2 tI2t Rating for Fusing (t < 8.3ms)8.404A 2s
