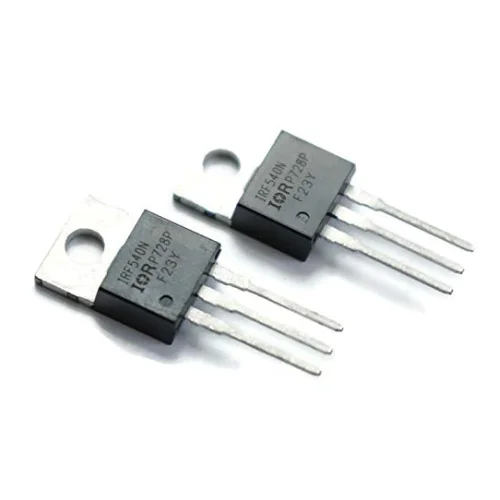

IRF540 MOSFET – 100V 33A N-Channel HEXFET Power MOSFET TO-220 Package

₹ 20.00

Number of Channels1 Channel
Transistor PolarityN-Channel
Drain-Source Breakdown Voltage (Vds)100V
Continuous Drain Current (Id)33A
Drain-Source Resistance (Rds On)44mOhms
Gate-Source Voltage (Vgs)20V
Gate Charge (Qg)71 nC
Operating Temperature Range-55 – 175°C
Power Dissipation (Pd)130W
Share it:

IRF540 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W.

Features

• Dynamic dV/dt rating
• Repetitive avalanche rated
• Fast switching
• Ease of paralleling
• Simple drive requirements
• Compliant to RoHS directive 2002/95/EC

Number of Channels1 Channel
Transistor PolarityN-Channel
Drain-Source Breakdown Voltage (Vds)100V
Continuous Drain Current (Id)33A
Drain-Source Resistance (Rds On)44mOhms
Gate-Source Voltage (Vgs)20V
Gate Charge (Qg)71 nC
Operating Temperature Range-55 – 175°C
Power Dissipation (Pd)130W
