BC847 NPN general-purpose transistors comes in Surface-Mounted Device (SMD) plastic packages. It is mainly used in General-purpose switching and amplification.

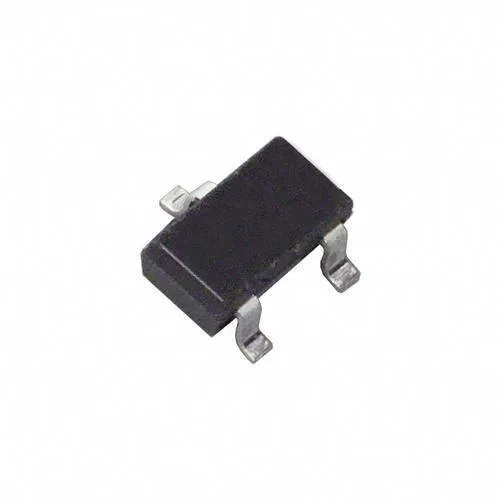

BC847 – (SMD SOT-23 Package) – NPN General Purpose Transistor
₹ 2.00
- Transistor Polarity: NPN
- Collector-Emitter Volt (Vceo): 45V
- Collector-Base Volt (Vcbo): 50V
- Collector Current (Ic): 0.1A
- hfe: 100-630 @ 100mA
- Power Dissipation (Ptot): 310mW
- Current-Gain-Bandwidth (ftotal): 300MHz
- Transistor Case Style: SOT-323
- No. of Pins: 3
- Package / Case: SOT-323
- Termination Type: SMD
₹ 5.00
SB772 PNP medium power transistor Features
- High current
- Low saturation voltage
- Complement to 2SD882 Applications
- Voltage regulation
- Relay driver
- Generic switch
- Audio power amplifier
₹ 1.95
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 60VDC |
| Collector-Emitter Voltage (VCEO) | 40VDC |
| Emitter-Base Voltage (VEBO) | 6VDC |
| Continuous Collector Current (IC) | 200mA |
| Output Capacitance (Cob) | 4pF |
| Transition Frequency (fT) | 300MHz |
| DC Current Gain (hFE) | 100-300 |
| Operating Temperature Range | -55 – 150°C |
| Power Dissipation (PD) | 1.5W |
₹ 3.00
- NPN Transistor
- DC Current Gain (hFE): 70-700
- Continuous Collector current: 150mA
- Base- Emitter Voltage: 1.1V
- Collector-Emitter Voltage: 50V
- Collector-Base Voltage: 60V
- Available in To-92 Package
₹ 1.30
- Product: BC557 Transistor
- Polarity: PNP
- Number of pins: 3
- package: TO-92
- Mounting type: Through hole
- Package contains: 5 x BC557 General Purpose PNP Amplifier
₹ 10.00
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 40VDC |
| Collector−Base Voltage (VCBO) | 40VDC |
| Continuous Collector Current (Ic) | 3ADC |
| Continuous Base Current (Ib) | 1ADC |
| Emitter Base Voltage (VEBO) | 5VDC |
| Power Dissipation (Pd) | 40W |
| Operating Temperature Range | -65 – 150°C |
| DC Current Gain (hFE) | 10-50 |
₹ 1.70
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 75V |
| Collector-Emitter Voltage (VCEO) | 40V |
| Emitter-Base Voltage (VEBO) | 6V |
| Continuous Collector Current (IC) | 0.6A |
| Collector-Base Capacitance (CCBO) | 8pF |
| Transition Frequency (fT) | 300MHz |
| DC Current Gain (hFE) | 300 |
| Operating Temperature Range | -65 – 175°C |
| Power Dissipation (PD) | 1.8W |
₹ 20.00
- With TO-220 package
- Low saturation voltage
- Complement to type 2SA671
- For use in low frequency
₹ 8.00
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 60V |
| Collector−Base Voltage (VCBO) | 60V |
| Continuous Collector Current (Ic) | 5A |
| Continuous Base Current (Ib) | 0.12A |
| Emitter Base Voltage (VEBO) | 5V |
| Power Dissipation (Pd) | 65W |
| Operating Temperature Range | -65 – 150°C |
| DC Current Gain (hFE) | 1000 |
₹ 14.00
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 40VDC |
| Collector−Base Voltage (VCBO) | 40VDC |
| Continuous Collector Current (Ic) | 6ADC |
| Continuous Base Current (Ib) | 2ADC |
| Emitter Base Voltage (VEBO) | 5VDC |
| Power Dissipation (Pd) | 65W |
| Operating Temperature Range | -65 – 150°C |
| DC Current Gain (hFE) | 15-75 |
₹ 6.00
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 45V |
| Collector−Base Voltage (VCBO) | 45V |
| Continuous Collector Current (Ic) | 1.5A |
| Continuous Base Current (Ib) | 0.5A |
| DC Current Gain (hFE) | 40-250 |
| Operating Temperature Range | -65 – 150°C |
| Power Dissipation (Pd) | 12.5W |
| Thermal Resistance (ΘJA) | 100°C/W |
| Thermal Resistance (ΘJC) | 10°C/W |
₹ 12.00
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 40VDC |
| Collector−Base Voltage (VCBO) | 40VDC |
| Continuous Collector Current (Ic) | 6ADC |
| Continuous Base Current (Ib) | 2ADC |
| Emitter Base Voltage (VEBO) | 5VDC |
| Power Dissipation (Pd) | 65W |
| Operating Temperature Range | -65 – 150°C |
| DC Current Gain (hFE) | 15-75 |
₹ 10.00
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 40VDC |
| Collector−Base Voltage (VCBO) | 40VDC |
| Continuous Collector Current (Ic) | 3ADC |
| Continuous Base Current (Ib) | 1ADC |
| Emitter Base Voltage (VEBO) | 5VDC |
| Power Dissipation (Pd) | 40W |
| Operating Temperature Range | -65 – 150°C |
| DC Current Gain (hFE) | 10-50 |
