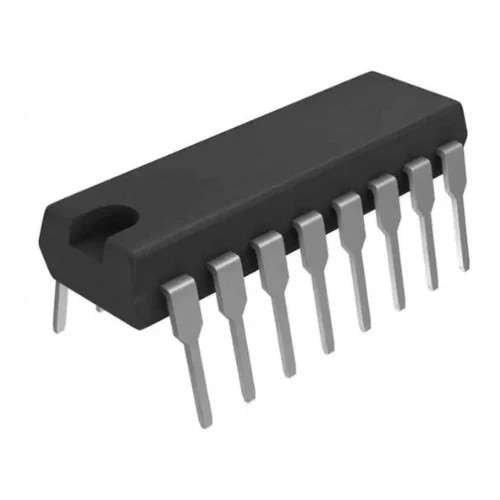

CD4009 CMOS Hex Buffers/Converter IC

CD4009 Hex Buffer/Converters may be used as CMOS to TTL or DTL logic-level converters or CMOS high-sink-current drivers.

The CD4009 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix).

Features:-

• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
• 5-V, 10-V, and 15-V parametric ratings
• Applications:
  • CMOS to DTL/TTL hex converter
  • CMOS current “sink” or “source” driver
  • CMOS high-to-low logic-level converter
  • Multiplexer — 1 to 6 or 6 to 1
