TDA 7294 100W Audio Amplifier IC

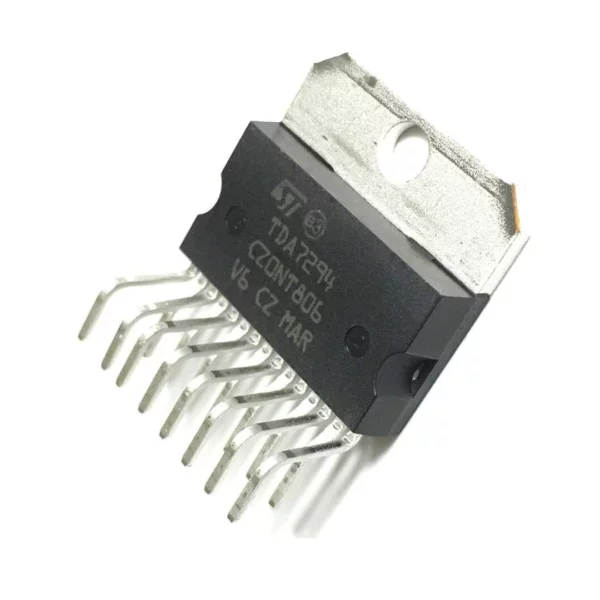

The TDA7294 is an integrated circuit designed for use as an audio amplifier in various Hi-Fi applications, such as home stereo systems, self-powered loudspeakers, and high-quality televisions. Here are some key features and details about the TDA7294 audio amplifier:

1. Operating Voltage Range: The TDA7294 has a wide operating voltage range of ±40V. This wide voltage range allows it to handle a variety of power supply voltages.
2. DMOS Power Stage: It utilizes a DMOS (Double-Diffused Metal-Oxide-Semiconductor) power stage. DMOS technology is known for its efficiency and high power-handling capabilities, making it suitable for high-quality audio amplification.
3. High Output Power: The TDA7294 is capable of delivering high output power, with a maximum power output of up to 100W in music power. This makes it suitable for driving speakers in audio systems, providing ample volume and clarity.
4. Muting/Standby Functions: The amplifier includes built-in muting and standby functions. These features simplify remote operation and help prevent unwanted noises when turning the amplifier on or off.
5. No Switch On/Off Noise: The muting and standby functions ensure that there are no audible switching on/off noises, which is important for maintaining audio quality and avoiding disturbances.
6. No Boucherot Cells: Unlike some other amplifiers, the TDA7294 does not require Boucherot cells. Boucherot cells are often used to stabilize amplifiers, but the absence of these cells simplifies the amplifier’s design.
7. Very Low Distortion: The TDA7294 is designed to provide very low distortion in the audio signal. This helps maintain the fidelity of the audio being amplified.
8. Very Low Noise: It also features low noise characteristics, ensuring that the amplifier doesn’t introduce unwanted noise into the audio signal.
9. Short Circuit Protection: The amplifier includes short-circuit protection to safeguard against damage in case of a short circuit on the output.
10. Thermal Shutdown: To prevent overheating and damage to the amplifier, it has a thermal shutdown feature that activates if the temperature exceeds safe levels.

Overall, the TDA7294 is a versatile audio amplifier IC with features that make it suitable for high-quality audio applications, including those in the Hi-Fi field. Its wide voltage range, high power output, and built-in protection mechanisms make it a reliable choice for audio amplification.
