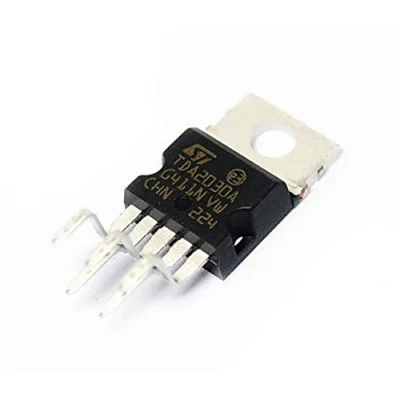

TDA2030 18W Hi-Fi Audio Power Amplifier IC TO-220-5 Package

 45.00



Share it:

The TDA2030 is a monolithic IC in a Pentawatt package intended for use as a low-frequency class-AB amplifier. With VS max = 44 V it is particularly suited for more reliable applications without regulated supply and for 35 W driver circuits using low-cost complementary pairs. The TDA2030 provides high output current and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range. A conventional thermal shutdown system is also included.

Features:-

■ Output power 18 W at VS = ±16 V / 4 Ω with 0.5% distortion
â–  High output current
â–  Very low harmonic and crossover distortion
â–  Short-circuit protection
â–  Thermal shutdown

Specifications:-

SymbolParameterValueUnit
VSSupply Voltage± 22V
VIInput VoltageVs
VIDifferential Input Voltage± 15V
IOPeak Output Current (Internally Limited)3.5A
PTOTTotal power dissipation at T case = 90 °C20W
TSTG, TJStorage and junction temperature– 40 to + 150°C
