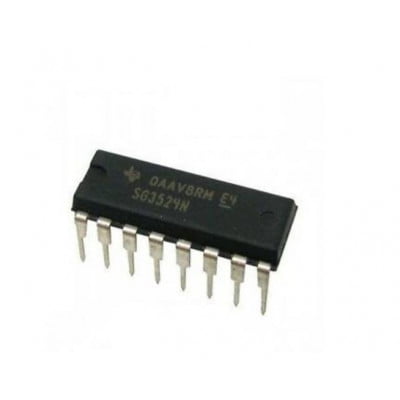

SG3524 incorporate all the functions required in the construction of a regulating power supply, inverter, or switching regulator on a single chip. It can be used as the control element for high-power-output applications. SG3524 was designed for switching regulators of either polarity, transformer-coupled dc-to-dc converters, transformerless voltage doublers, and polarity-converter applications employing fixed-frequency, pulse-width modulation (PWM) techniques. The complementary output allows either single-ended or push-pull application. Each device includes an on-chip regulator, error amplifier, programmable oscillator, pulse-steering flip-flop, two uncommitted pass transistors, a high-gain comparator, and current-limiting and shutdown circuitry.
Features:-
- Complete Pulse-Width Modulation (PWM) Power-Control Circuitry
- Uncommitted Outputs for Single-Ended or Push-Pull Applications
- 8 mA (TYP) Standby Current
Specification:-
| Parameter | Value |
| Part number | SG3524 |
| Topology | Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull |
| Control method | Voltage |
| VCC(Min) (V) | 8 |
| VCC(Max) (V) | 40 |
| Frequency(Max)(kHz) | 722 |
| UVLO thresholds on/off(V) | |
| Duty cycle(Max)(%) | 45 |
| Gate drive (Typ) (A) | 0.05 |
| Features | Adjustable Switching Frequency, Error Amplifier, Multi-topology |
| Rating | Refer Data Sheet |
| Operating temperature range (°C) | 0 to 70 |
| Package Group | PDIP|16 |
| Package size: mm2:W x L (PKG) | 16PDIP: 181 mm2: 9.4 x 19.3 (PDIP|16) |
