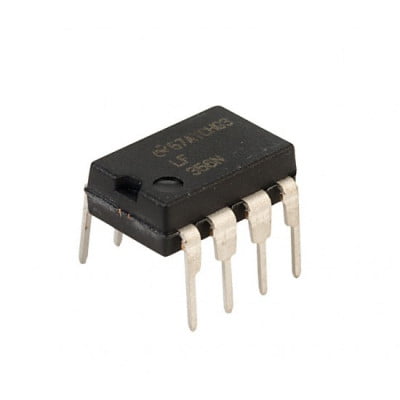

LF356 JFET Input Op-Amp IC DIP-8 Package

The LF356 device are the first monolithic JFET input operational amplifiers to incorporate well matched, high-voltage JFETs on the same chip with standard bipolar transistors (BI-FET™ Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

Features:-

1. Advantages

– Replace Expensive Hybrid and Module FET Op Amps
– Rugged JFETs Allow Blow-Out Free Handling Compared With MOSFET Input Devices
– Excellent for Low Noise Applications Using Either High or Low Source Impedance
—Very Low 1/f Corner
– Offset Adjust Does Not Degrade Drift or Common-Mode Rejection as in Most Monolithic Amplifiers
– New Output Stage Allows Use of Large Capacitive Loads (5,000 pF) Without Stability Problems
– Internal Compensation and Large Differential Input Voltage Capability

2. Common Features

– Low Input Bias Current: 30 pA
– Low Input Offset Current: 3 pA
– High Input Impedance: 1012 Ω
– Low Input Noise Current: 0.01 pA/√Hz
– High Common-Mode Rejection Ratio: 100 dB
– Large DC Voltage Gain: 106 dB

3. Uncommon Features

– Extremely Fast Settling Time to 0.01%: 1.5 μs
– Fast Slew Rate: 12 V/µs
– Wide Gain Bandwidth: 5 MHz
– Low Input Noise Voltage: 12 nV/√Hz

Specification:-
