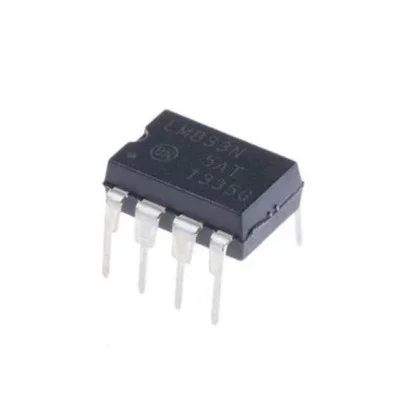

LM833 Dual Low Noise Audio Op-Amp IC DIP-8 Package

The LM833 is a standard low−cost monolithic dual general−purpose operational amplifier employing Bipolar technology with innovative high−performance concepts for audio systems applications. With high frequency PNP transistors, the LM833 offers low voltage noise (4.5 nV/ Hz ), 15 MHz gain bandwidth product, 7.0 V/s slew rate, 0.3 mV input offset voltage with 2.0 V/°C temperature coefficient of input offset voltage. The LM833 output stage exhibits no dead−band crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.

Features:-

• Low Voltage Noise: 4.5 nV/ Hz
• High Gain Bandwidth Product: 15 MHz
• High Slew Rate: 7.0 V/s
• Low Input Offset Voltage: 0.3 mV
• Low T.C. of Input Offset Voltage: 2.0 V/°C
• Low Distortion: 0.002%
• Excellent Frequency Stability
• Dual Supply Operation
• NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls
• These Devices are Pb−Free and are RoHS Compliant

Specification:-
