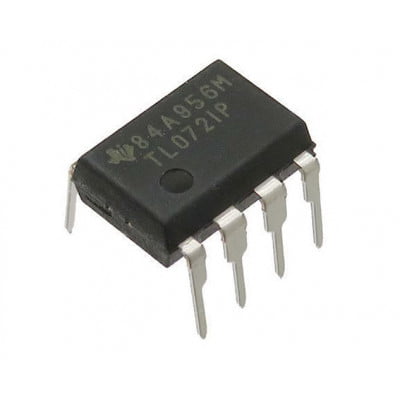

The TL072 JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL072 series ideally suited for high-fidelity and audio pre-amplifier applications.
Features:-
• Low Power Consumption
• Wide Common-Mode and Differential Voltage Ranges
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Low Total Harmonic Distortion: 0.003% (Typical)
• Low Noise Vn = 18 nV/√Hz (Typical) at f = 1 kHz
• High-Input Impedance: JFET Input Stage
• Internal Frequency Compensation
• Latch-Up-Free Operation
• High Slew Rate: 13 V/μs (Typical)
• Common-Mode Input Voltage Range Includes VCC+
Specification:-
| Parameter | Specification |
| Number of channels (#) | 2 |
| Total supply voltage (Max) (+5V=5, +/-5V=10) | 30 |
| Total supply voltage (Min) (+5V=5, +/-5V=10) | 7 |
| Rail-to-rail | In to V+ |
| GBW (Typ) (MHz) | 3 |
| Slew rate (Typ) (V/us) | 13 |
| Vos (offset voltage @ 25 C) (Max) (mV) | 6 |
| Iq per channel (Typ) (mA) | 1.4 |
| Vn at 1 kHz (Typ) (nV/rtHz) | 18 |
| Rating | See Data Sheet |
| Operating temperature range © | -40 to 85, 0 to 70 |
| Offset drift (Typ) (uV/C) | 18 |
| Input bias current (Max) (pA) | 200 |
| CMRR (Typ) (dB) | 100 |
| Output current (Typ) (mA) | 10 |
