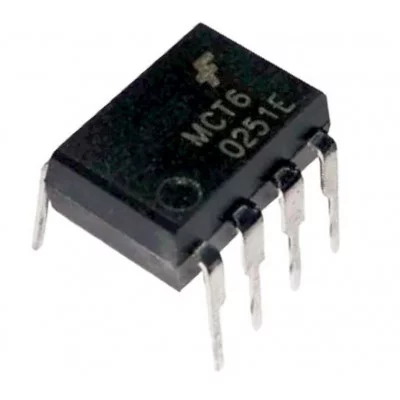

The MCT6 Optocouplers have two channels for density applications. For four channel applications, two-packages fit into a standard 16-pin DIP socket. Each channel is an NPN silicon planar photo transistor optically coupled to a gallium arsenide infrared emitting diode.
Features:-
• Two isolated channels per package
• Two packages fit into a 16 lead DIP socket
• Choice of three current transfer ratios
• Underwriters Laboratory (U.L.) recognized File E90700
Applications:-
• AC Line/Digital Logic – Isolate high voltage transients
• Digital Logic/Digital Logic – Eliminate spurious grounds
• Digital Logic/AC Triac Control – Isolate high voltage transients
• Twisted pair line receiver – Eliminate ground loop feedthrough
• Telephone/Telegraph line receiver – Isolate high voltage transients
• High Frequency Power Supply Feedback Control – Maintain floating grounds and transients
• Relay contact monitor – Isolate floating grounds and transients
• Power supply monitor – Isolate transients
Specification:-
| Symbol | Parameter | Value | Unit |
| IF | Forward current | 60 | mA |
| PD | Power dissipation | 100 | mW |
| VR | Reverse Voltage | 3 | V |
| Tstg | Storage temperature range | – 55 to + 150 | °C |
| TOPR | Operating Temperature | – 55 to + 150 | °C |
| TSOL | Lead Solder Temperature | 260 for 10 sec | °C |
| IF(pk) | Forward Current – Peak (PW = 1µs, 300pps) | 3 | A |
| IC | Collector current | 30 | mA |
