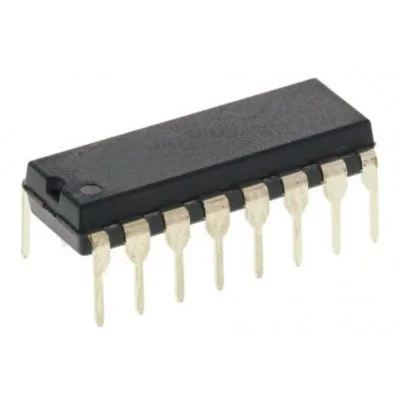

DG408D IC – Improved, 8-Channel/Dual 4-Channel, CMOS Analog Multiplexer IC

The DG408 analog multiplexers now feature guaranteed matching between channels (8Ω max) and flatness over the specified signal range (9Ω max). These low on-resistance muxes (100Ω max) conduct equally well in either direction and feature guaranteed low charge injection (15pC max). In addition, these new muxes offer low input off-leakage current over temperature—less than 5nA at +85°C. The DG408 is a 1-of-8 multiplexer/demultiplexer. The muxes operate with a +5V to +30V single supply and with ±5V to ±20V dual supplies. ESD protection is guaranteed to be greater than 2000V per Method 3015.7 of MIL-STD-883. These improved muxes is pin-compatible plug-in upgrades for the industry standard DG408.

Features:-

♦ Pin-Compatible Plug-In Upgrades for Industry Standard DG408
♦ Guaranteed Matching Between Channels, 8Ω Max
♦ Guaranteed On-Resistance Flatness, 9Ω Max
♦ Guaranteed Low Charge Injection, 15pC Max
♦ Low On-Resistance, 100Ω Max
♦ Input Leakage, 5nA Max at +85°C
♦ Low Power Consumption, 1.25mW Max
♦ Rail-to-Rail Signal Handling
♦ Digital Input Controls TTL/CMOS Compatible
♦ ESD Protection >2000V per Method 3015.7
